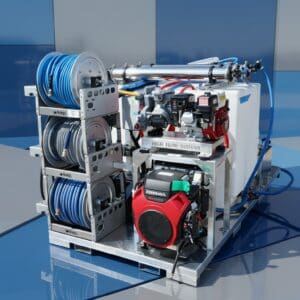

Core Van Skid for Drone Washing

Description

Skid Frame & Platform: Constructed of premium aluminum, tig welded in house by our fabrication team. Main platform dimensions 96”Lx48”W. Overall height is 60”. This skid is designed to fit high top commercial vans such as the Ford Transit, Ram ProMaster or Mercedes Sprinter with a minimum cargo length of 96”.  *Cargo length of 120”-144” is recommended for additional storage space*

Pressure Wash System: The skid is equipped with an 8.0 gallon-per-minute, 3500 psi industrial high-pressure pump. The pump is a gear driven industrial, triplex plunger pump and is powered via a Honda GX690 electric start engine with stainless platform & vibration isolators.

Pressure Wash Chemical Injection: Manual downstream injector bypass with ClearView V4 soap selector.

Soft Wash System: The soft wash system is a gear driven Comet P40 diaphragm pump 11.5 gallons per minute at 300 psi. The pump is powered by an electric start Honda GX160/GX200 engine. The pump and engine are mounted to a corrosion resistant stainless-steel platform with vibration isolators.

• Chemical Metering System: The soft wash pump is connected to a ClearView Hydro-Mixer XL. This system eliminates batch mixing and allows you to mix water, chemicals and soap while cleaning. The valves come with labels for estimating output ratios so you can rapidly and accurately change the mix of the products you are applying. This Hydro-Mixer has the following valve controls: raw water, soap, chem, DI water.  A soap selector valve allows you to switch between two soaps.  Manual flush valve included to flush the system of chemical.

Pure Water System: 3 Stage DI Filtration

• 10” sediment and 10” carbon prefilters
• (2) High-capacity DI resin tanks
• Manual TDS meter to measure water quality

Tanks: (1) 200-gallon raw/DI water tank, (1) 55-gallon chem tank, (2) 7-gallon soap tanks

Hose Reels & Hose: (3) 12” manual reels with aluminum frames and stainless-steel internals

• High Pressure: (1) 12” manual reel w/200’x3/8” high pressure hose (grey non-marking)
• Water Supply: (1) 12” manual reel w/200’x5/8” water supply hose
• Soft Wash: (1) 12” manual reel w/100’x5/8” +200’x3/8” soft wash hose

Electrical: (1) group 27 marine deep-cycle battery for starting the engines. The battery is protected inside a waterproof box.
